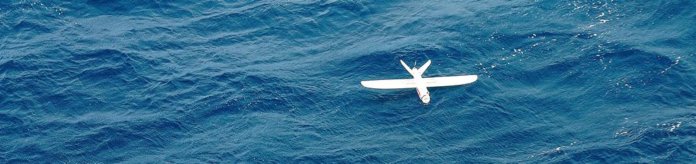

The Aeromapper Talon Amphibiousallows maritime operations by autonomously belly landing on water. It’s the perfect solution for aerial observation, data collection and mapping thanks to its dual camera set up and video link range up to 20kms.
It is the world’s first fixed-wing drone for commercial use that lands on water, parachutes down on land, and carries a dual set of cameras for both aerial observation and mapping.
The Aeromapper Talon Amphibious; a big fish in a small pond.
Unmanned aerial vehicles (UAVs) or drones which can safely land on water are a relative scarcity, and fixed-wing users working in the “splash-zone” will be interested in our latest technology. The creation of our amphibious unit which is truly affordable and multi-functional is central to our engineering approach; a solution for all UAV users in marine or freshwater conditions, in all industries. Thus far, fixed-wing UAVs have been the industry model of choice for surveys which require power; long endurance times, substantial payload and extensive range, and our new unit delivers all that plus the ability to function 100% amphibiously by landing on water and being watertight.
Photo above: checking both the flight systems of the UAV and video signal on the orange GCS prior to a test flight in a Lake. Despite wind gusts of up to 49kph and big waves the UAV performed flawlessly.
Our amphibious UAV has been extensively tested in challenging marine conditions by marine ecologists in London, who were the original inspiration for the design. Marine ecologists, and field biologists, have it tough. Their working conditions on vessels or in far flung remote island locations may appear idyllic but can present many logistical problems and constraints when it comes to gathering data. There can be waves, wind and rain at any given moment and the scientists needed a UAV which could stand up to this harsh environment. We were fortunate enough to not only train two scientists in our UAV handling and piloting, but to send two of the amphibious units to the field, to be tested, proving that the system can be quickly taught and implemented.
The UAV was successfully flown in the British Indian Ocean Territories (BIOT) as part of a scientific expedition led by the Zoological Society of London. This is the first time that a fixed-wing amphibious UAV has been used in the UK Overseas Territories and the applications of a water landing unit in marine ecological surveys, fisheries management and maritime surveillance are vast.
Photo above: moments during takeoff of an Aeromapper Talon amphibious on one of the many flights from the Grampian Frontier, the vessel that patrols the British Indian Ocean Territories
The amphibious UAV was piloted and trialled by an MSc student from Imperial College London, who described the unit as “An incredible tool for gathering vast amounts of ecological and habitat data, safe in the knowledge that we can easily land anywhere near the main vessel, on the ocean. In the tropics, rain clouds can often hit out of nowhere, and with this amphibious UAV, we no longer have to worry about rain water leaking in, either.”. Over 25,000 images were collected during the ecological surveys and the scientists were able to analyse the images to calculate the abundances of sharks and birds. Their camera of choice was the Garmin VIRB which allowed for geotagging of each image. The UAV is already gathering a lot of interest in the research world after being showcased at a marine symposium in London, with scientists and managers from around the world, looking to implement it into their coastal project operations.
The UAV is quickly assembled and deployed by hand (easily done by anyone), from the shore, from a small boat or from large steel vessels, without disruption to the GPS system; an issue which can affect multicoptrers and VTOL drones. What makes this system unique to life on the water, is the fully waterproofed fuselage and internal components, using marine grade parts which will avoid corrosion from salt water. The development has been a careful, iterative process, taking on board client customisations quickly and efficiently. The UAV can also be equipped with a live camera system (excellent for monitoring and surveillance) as well as a 20Mp camera which will take crystal clear stills or film. The UAV is simple to retrieve from the water using a small boat or you can land it near to, or on a beach. With a cruise speed of 60kph, communications range of +30Km and flight endurance of nearly 2 hours, you will be able to cover a huge area, saving money and time. Based on trials at sea, we learnt that finding a UAV that goes out of sight, is important, so a GPS beacon will let you know where it is, for easy boat-based retrieval.
We are proud to offer a product which has been robustly tested in harsh maritime conditions by leading experts in their field, who have given their seal of approval.
We envision the application of this amphibious UAV in aquaculture, marine sciences and conservation, coastal management and enforcement, freshwater body management, flood zones, fisheries, disaster areas, around oil rigs, dams; in fact, anywhere where water was once a hindrance to your UAV surveying. We offer full training for the UAV to ensure maximum effectiveness for your chosen objectives.
Photo above: a beautiful aerial from an aerial survey taken by an Aeromapper Talon somewhere in the Maldives.
For more information please visit:https://www.aeromao.com/aeromapper-talon-amphibious-big-fish-small-pond/
About Aeromao Inc.
Is a Canadian leading UAV manufacturer, developer of the Aeromapper series of turnkey unmanned aerial vehicles for mapping, surveying, precision agriculture and remote sensing.
With exports to more than 45 countries since 2012, Aeromao Inc. offers a line of products that adapt very quickly to market demands and to unique client’s applications, where no other UAV manufacturer goes. The Aeromappers have been used by corporations, research organizations, universities and government agencies around the globe for a great variety of applications.
Companies like Lockheed Martin (USA), Aerosonde (Australia), United States department of Agriculture, Environment Canada, King Abdullah University of Science and Technology (United Arab Emirates), Nature Conservancy of Canada, Mantech (USA), MarsRobotic (Saudi Arabia), Foresight Surveyors (Maldives), Zoological Society of London (UK) are using the Aeromappers for their flight operations and business development in different areas. Aeromao extends its range of services to the unmanned systems sector from particular customizations of the drones and the implementation of specific payloads to flight training and operational support.
